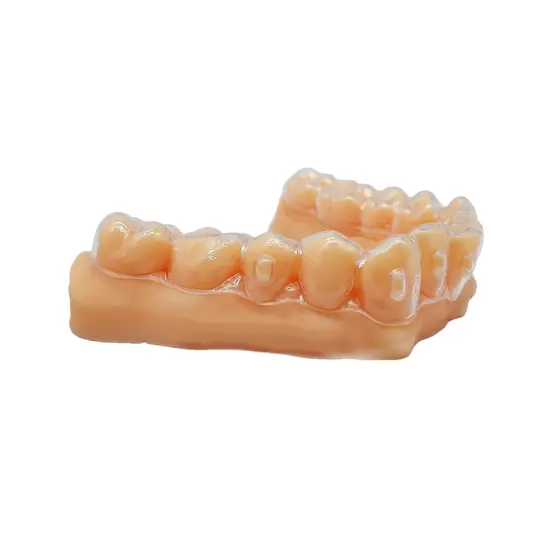

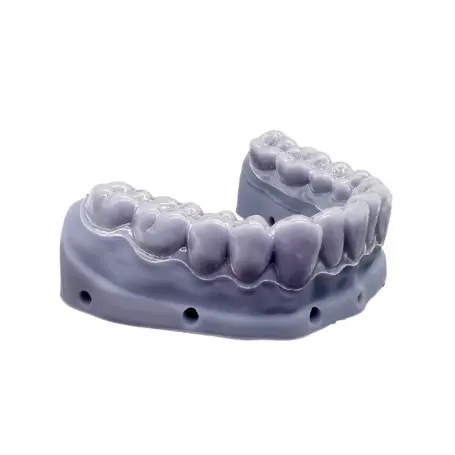

Ortho Model Resin

Ortho Model Resin is a high-precision resin designed for orthodontic models. It offers excellent detail reproduction, low odor, high-temperature resistance, and is compatible with thermoforming processes.

Features

  • High detail
  • Super low odor &non VOC
  • IPA clean or water washable
  • Suitable for any orthodontic case
  • High temperature resistance 140℃
  • Able to be pressed a few times by thermoforming machine
Inquiry
Email us
Ortho Model Resin
Ortho Model Resin
Ortho Model Resin
Ortho Model Resin
Ortho Model Resin
Ortho Model Resin

Specification Data

Paramaters Standard
Tensile strength(MPa) 37.88±10%
Elongation at yield point(%) 3.09±10%
Flexural modulus(MPa) 1699.7±10%
Notched impact strength (J/m) 72±10%
Hardness(Shore D) 80-88
Viscosity(MPa.S) 250-400
Density(g/cm³) 1.05-1.25

ADVANTAGES:

  • Captures detailed features for accurate orthodontic modeling.
  • Non-VOC formulation suitable for lab use.
  • Maintains stability at high temperatures and during thermoforming.
  • Can be cleaned with IPA or water, compatible with thermoforming machines.
  • Suitable for all orthodontic model applications
