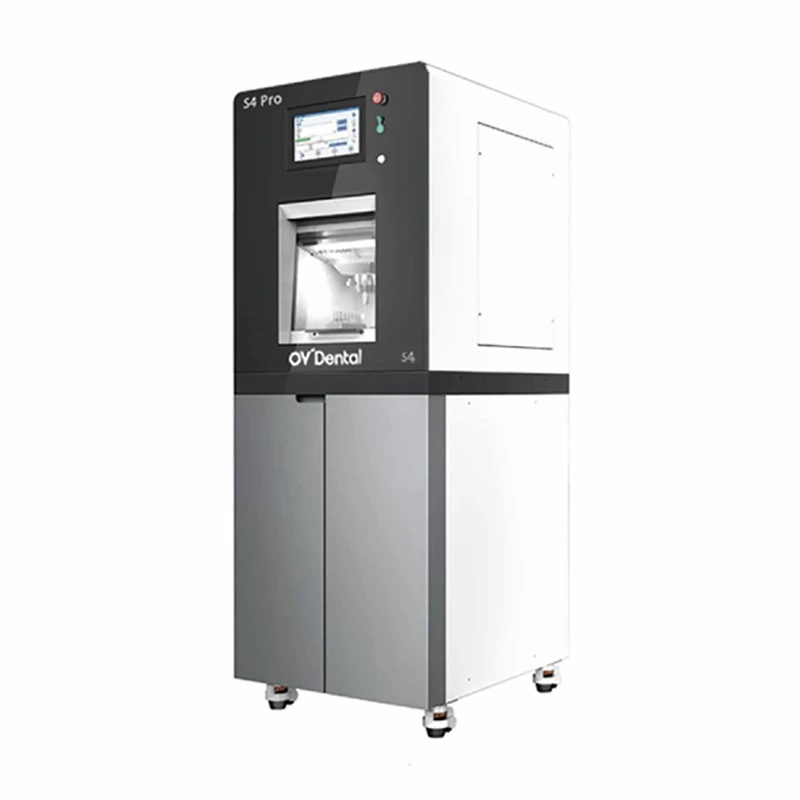

S4 Pro 4-Axis Wet Milling Machine

Name: S4 Pro 4-Axis Wet Milling Machine
Brand: OV Dental Technology
SKU: 00066
Rating: 4.8 (102 reviews)

High-precision 4-axis dental milling machine suitable for a variety of materials and applications, including abutments, crowns, inlays, veneers, and bridges.

Features

80mm high-torque spindle with stable operation
Multi-fixtures for diverse materials (wax, PMMA, PEEK, glass ceramic, titanium)
4-axis gantry structure with precision guideways
Auto-tool calibration and tool change

Inquiry

Email us

Specification Data

Control Axes	4 Axis
Precision	5μm
Spindle Speed	6000 rpm
Spindle Power	1.8 KW
Tool Capacity	18 Tools
Cooling	Watering
Weight	~700 kg
Total Power	3.6 kw

Travel (XYZ)	225 x 140 x 110 mm
Machining Angle	±360°
Material	Wax, PMMA, peek, Glass Ceramic, Titanium Disc/Rod, Disc, Plate
Application	Abutment, Crown, inlay, Veneer, Bridge
Dimension (W/D/H)	660 × 810 × 1800 mm
Voltage	AC 220V 50/60HZ
Weight	~700 kg
Total Power	3.6 kw

Advantages:

Ensures precise milling with 5μm accuracy
Supports continuous 24-hour operation for high productivity
Handles a wide range of dental restorations: abutments, crowns, inlays, veneers, bridges
Protects machine from voltage and air pressure fluctuations
Water cooling maintains spindle stability and prolongs tool life
Robust cast-iron structure ensures vibration-free, reliable operation
