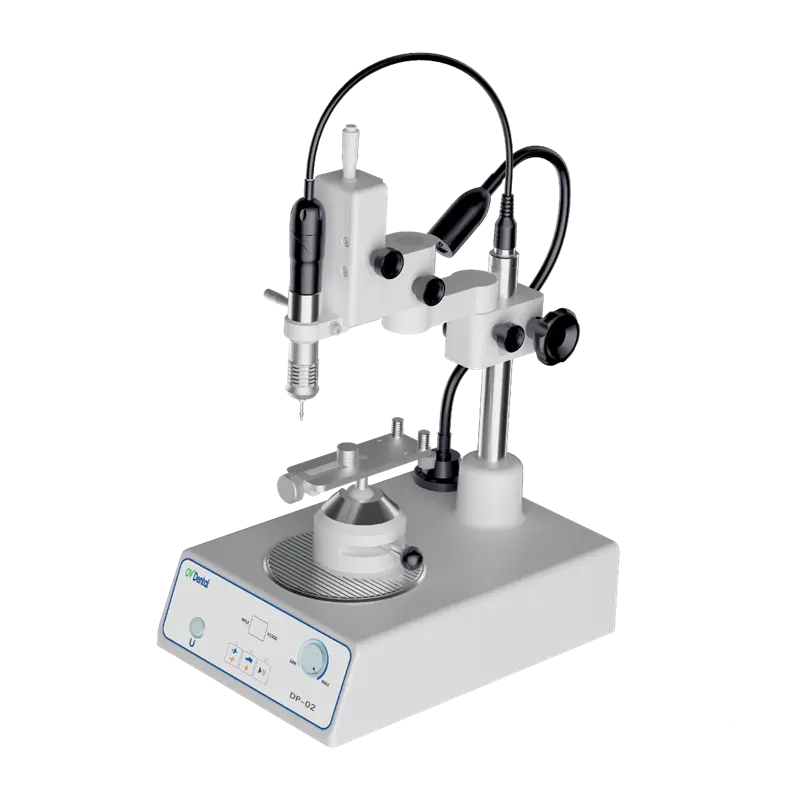

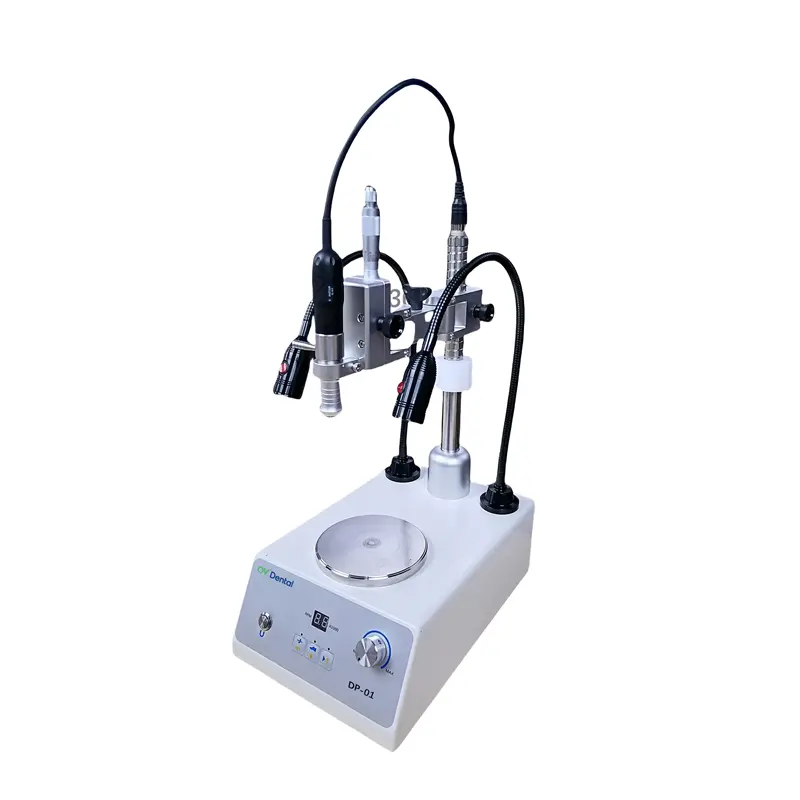

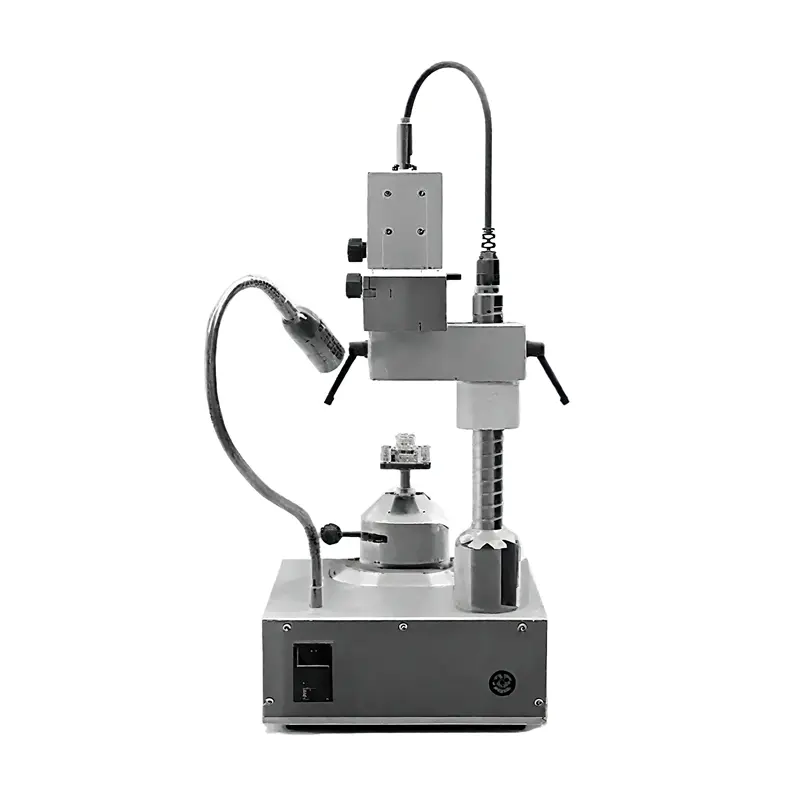

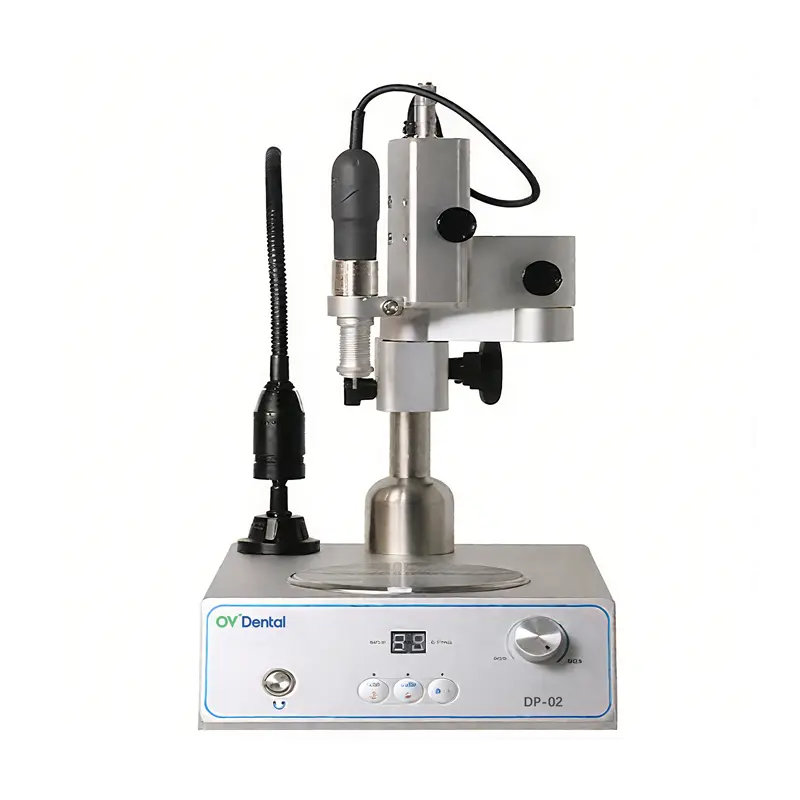

Precision Milling Machine series (DP-01/DP-02)

The Precision Milling Machine series (DP-01/DP-02) is designed for fine grinding of dental components such as abutments and bridges. With powerful brushless motors, flexible operation, and ergonomic design, it provides reliable support for professional dental restorations.

Features

  • Flexible and smooth movable arm for precise grinding.

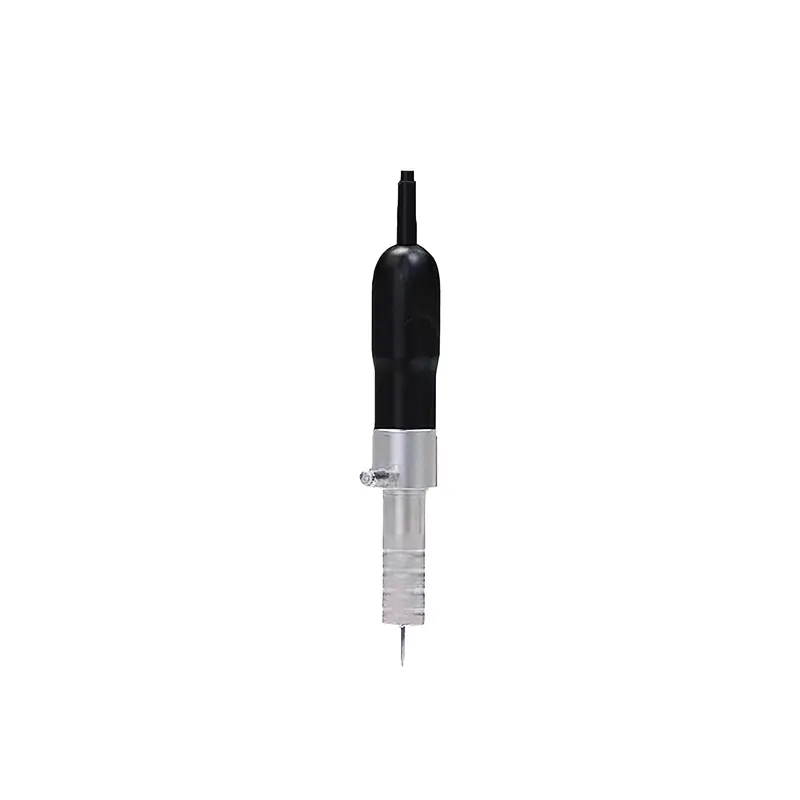

  • Brushless grinding head with strong power and long lifespan.
  • Equipped with single or dual LED universal lights for better visibility.

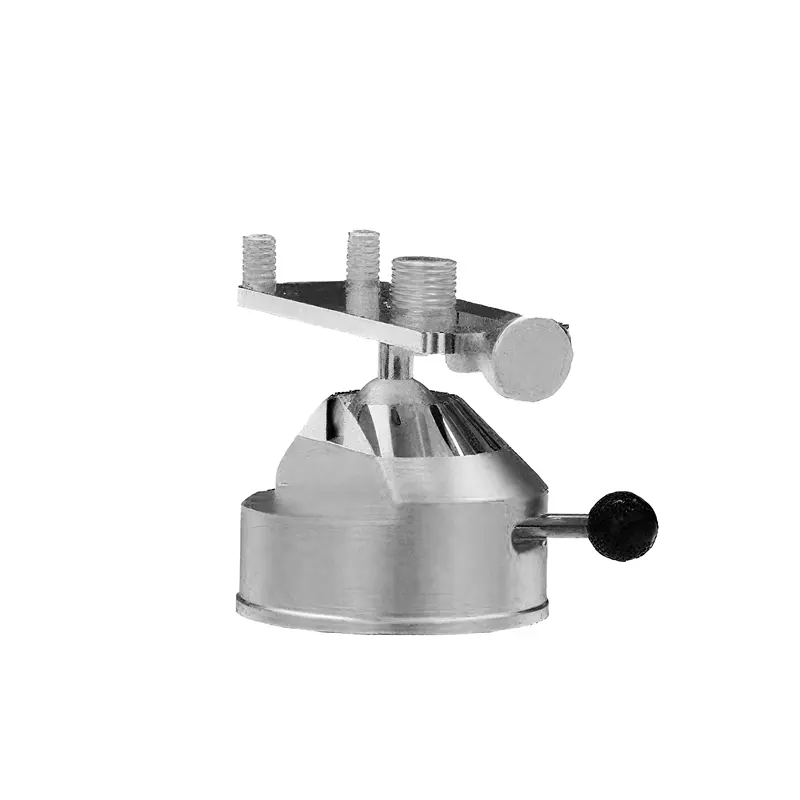

  • Large pitch jaws or optional electromagnetic suction cups with strong adsorption force (up to 80 kg).
  • DP-01: Sheet metal painting process with unique design.
  • DP-02: Full aluminum alloy body for durability and stability.
  • Forward/reverse stepless variable speed control.
  • Manual foot pedal for hands-free operation.
  • Multiple protection systems: overheat, overload, and overcurrent protection.



Specification Data

Category Specification Precision Milling Machine DP-01 Precision Milling Machine DP-02
Input Voltage 220V~50/60Hz
Output Voltage 48V
Rated Power 200W
Fuse Model T(3A)
Grinding Speed   0~60000RPM 0~50000RPM
Grinding Torque   8.5Ncm 7.8Ncm
Grinding Power 60W
Electromagnetic Sucker 13W
Adsorption Force 880kg
Lighting   LED Light x2 LED Light x1
Control Mode Manual foot control model
Speed Control Forward/reverse stepless variable speed
Circuit Protection Overheat/overload/overcurrent
Motor Type Brushless DC motor
Dimensions (L×W×H)   220 × 336 × 478 mm 219 × 336 × 520 mm
Weight   18KGS 18.4KGS

Advantages:

  • High performance: Brushless motor with stable torque and power.
  • Precision: Up to 60,000 RPM for accurate grinding of abutments and bridges.
  • Flexible choice: DP-01 for cost-effective use;DP-02 with aluminum alloy body for enhanced durability.
  • Strong holding: Electromagnetic suction cup ensures stable workpiece fixation.
  • Safety: Multiple protection systems extend machine life.
  • User-friendly: Adjustable speed, forward/reverse control, and ergonomic foot pedal.
