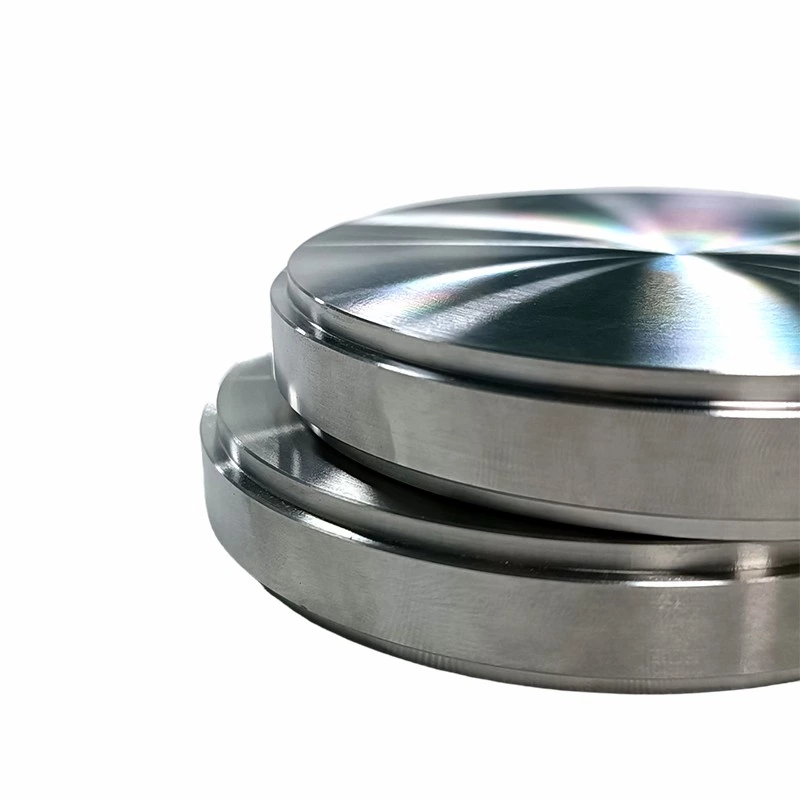

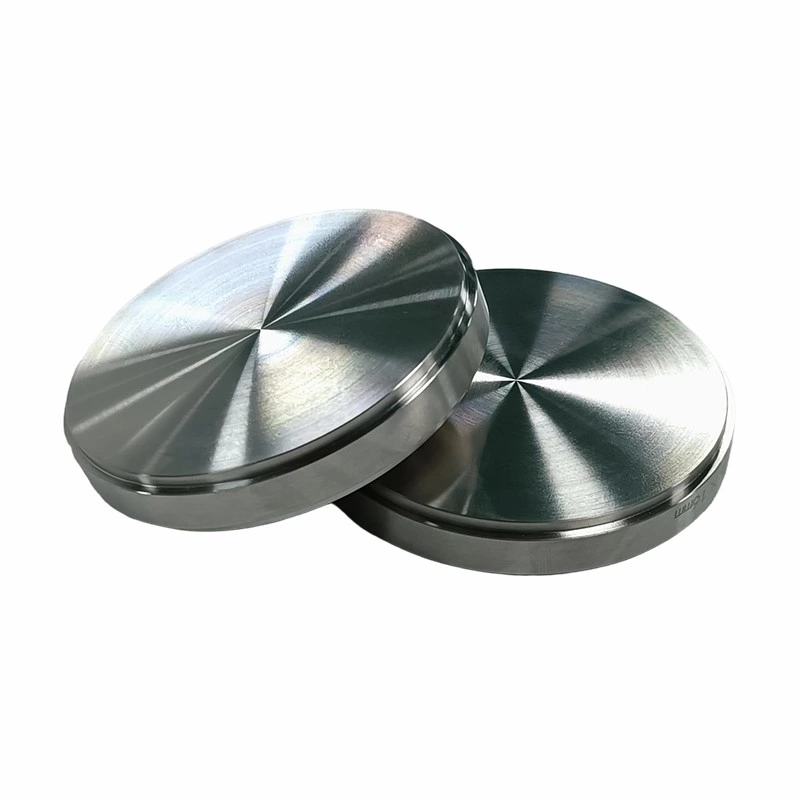

Circular Titanium Disc

Titanium Circular Disc (TiAl6V4) is a high-performance titanium alloy designed for dental applications, including implant-supported restorations, superstructures, bars, abutments, crowns, and bridges. It offers excellent biocompatibility, corrosion resistance, and thermal comfort, making it ideal for precise and durable restorations.

Features

  • Made from grade 5 titanium alloy TiAl6V4 .
  • Exceptional gold-ceramic bonding properties .
  • Extremely corrosion resistant.
  • Excellent bio compatibility.
  • Particularly patient friendly due to low thermal conductivity.

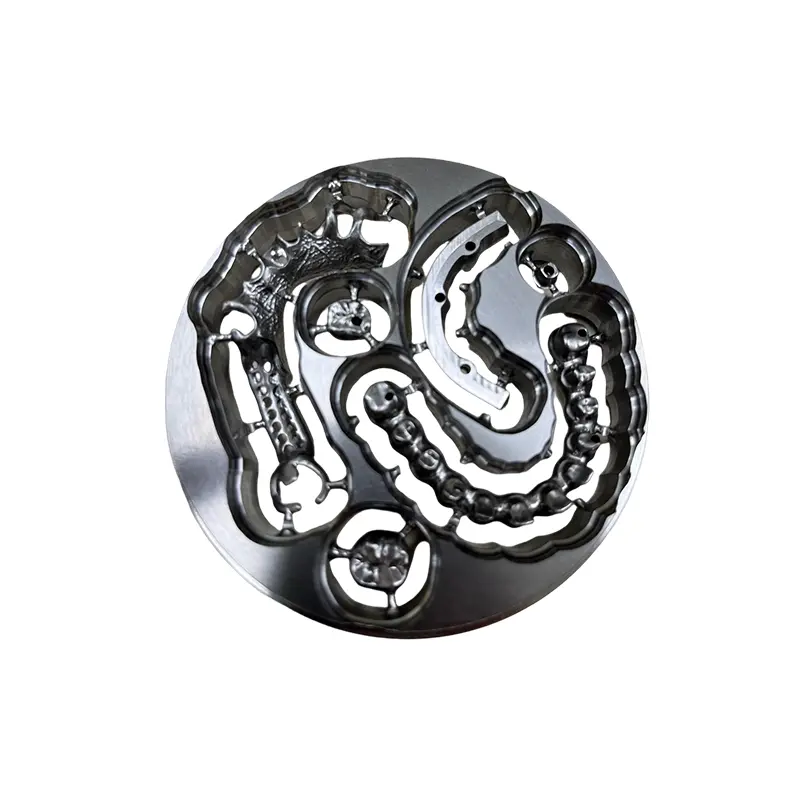

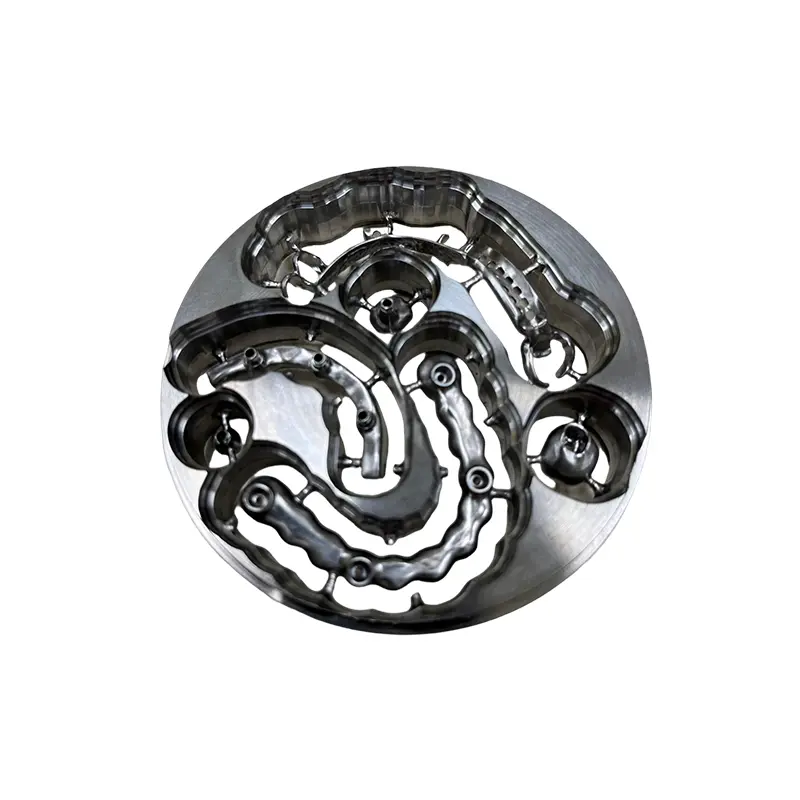

  • Perfectly suitable for implant-supported restorations,superstructures,bars,    abutments, crowns and bridges.

Specification Data

Technical Data
0.2%, specified non proportional elongation strength Rp0.2/ MPa 860MPa
Young's modulus 110GPa
Elongation after fracture 8%
Casting temperature 1700°C
Melting temperature 1640-1670°C
Density 4.4 g/cm³
Thickness 10,12,14,16,18,20,25mm
Technical Data
Max. firing temp. maximale max. 950°C
Linear expansion coefficient 10×10⁻⁶ K⁻¹
Hardness 295HV10
Tarnish resistance Yes
Corrosion resistance ≤200 µg/cm²
Tensile strength 885MPa
Diameter 98mm

ADVANTAGES:

  • High mechanical strength for long-lasting restorations.
  • Low thermal conductivity improves comfort.
  • Maintains integrity over time.
  • Suitable for implants, bars, abutments, crowns, and bridges.
  • Ensures excellent bonding in combined restorations
