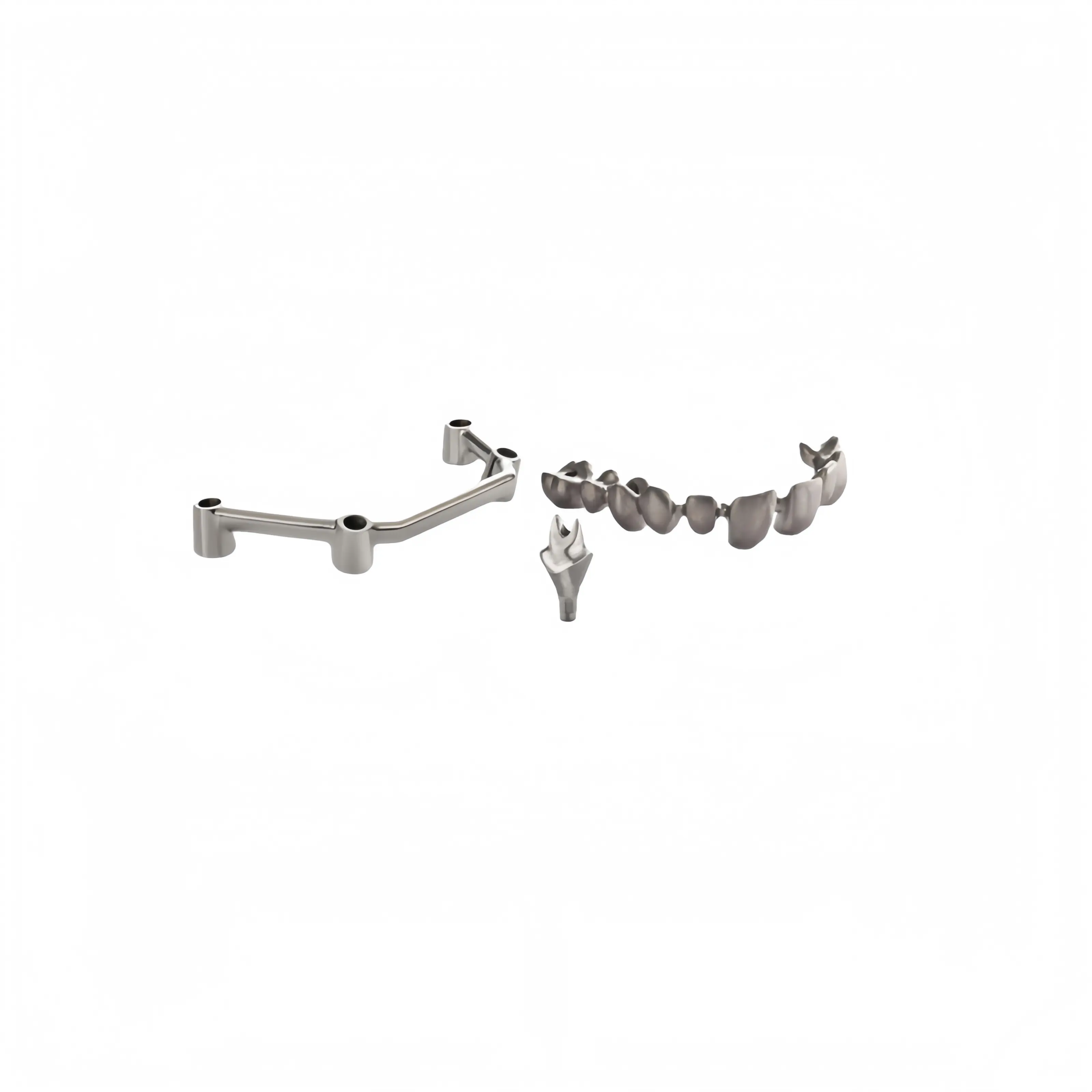

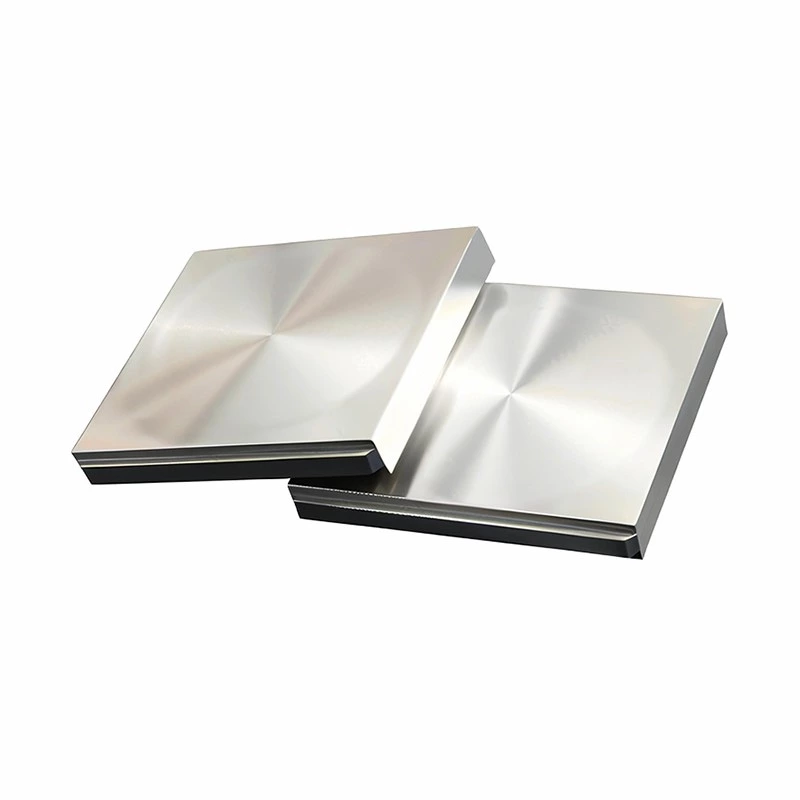

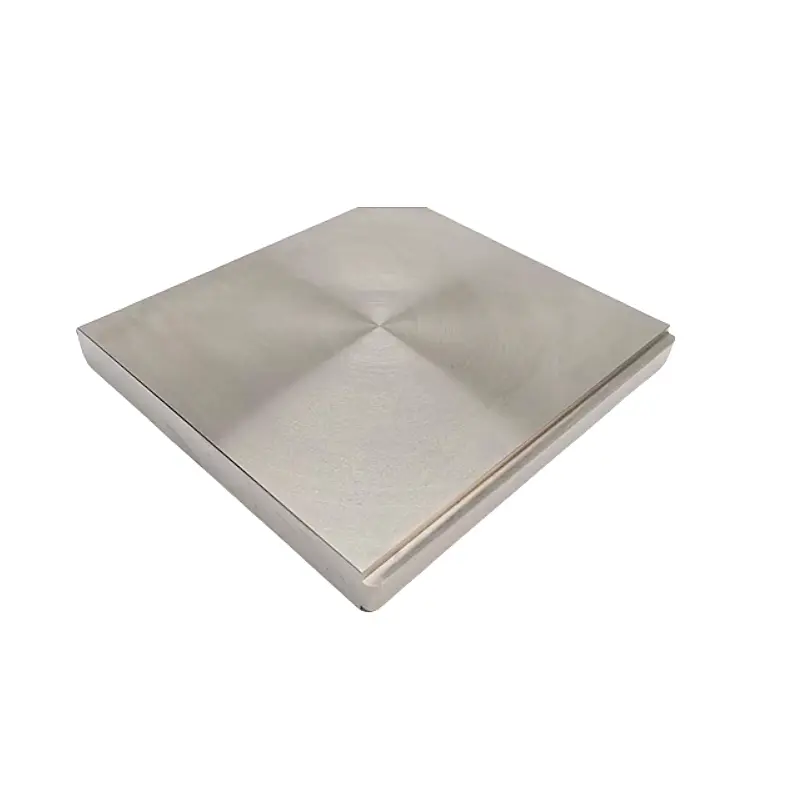

Square Titanium Disc is a high-quality titanium alloy disc designed for dental applications. It offers excellent biocompatibility, corrosion resistance, and low thermal conductivity, making it suitable for implant-supported restorations, superstructures, bars, abutments, crowns, and bridges.
| Parameters | Standard |
|---|---|
| 0.2%, specified non proportional elongation strength Rp0.2/ MPa | 860MPa |
| Young's modulus | 110GPa |
| Elongation after fracture | 8% |
| Casting temperature | 1700°C |
| Melting temperature | 1640-1670°C |
| Density | 4.4 g/ cm³ |
| Thickness | 10,12,14,16,18,20,25mm |
|---|---|
| Max. firing temp. maximale | max. 950 °C |
| Linear expansion coefficient | 10×10⁻⁶ K⁻¹ |
| Hardness | 295HV10 |
| Tarnish resistance | Yes |
| Corrosion resistance | ≤200 µg/ cm² |
| Tensile strength | 885MPa |
| Dimension (L*W) | 150*140mm |
